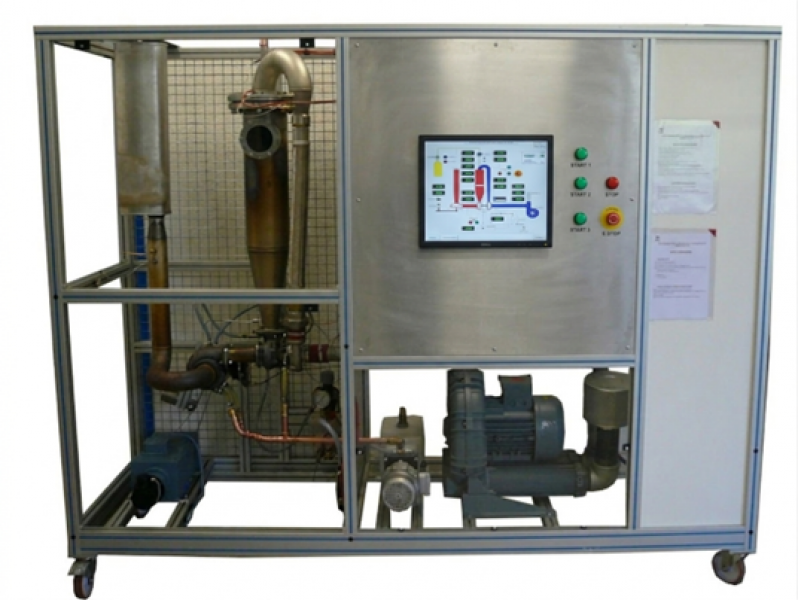

The bench is installed on an aluminium profile structure equipped with four braked-directional castors.
It includes an electrical box with a power disconnector and a 30mA RCD.
1. Centrifugal fan
Compression 0.5 to 0.7 bar
Airflow up to 300m3/h
Feed filters
2. Turbine generator
Single-stage centrifugal compressor
- compression ratio from 1.2 to 3
- air flow from 100 to 700Kg/h
Single-stage turbine
- wedged on the compressor shaft
- powered by the expansion of gases from the combustion chamber
3. Combustion chamber
Stainless steel
Air supply from the compressor
Propane supply
Propane air mixture
Electric arc ignition with high-voltage probes
Flame detection probe
4. Propane circuit
Pressure regulator
Ignition solenoid valve
Solenoid valve normal run
Propane flow meter
Injection nozzle
5. Power turbine
Powered by the expansion of gases coming from the generating turbine
Speed reducer
Servo motor
-max speed 3750 rpm
-max power 2 KW
6. Turbine lubrication plant
Distribution on the two turbine shafts
Air /oil exchanger for cooling
7. Measurements
7 temperature measurements
6 pressure measurements
2 flow measurements
2 turbine rotational speed measurements
1 power measurement produced
8. Manual settings
Propane pressure
Propane flow
Turbine speed power
9. Security
Combustion chamber temperature
Lubricating oil temperature
Lubricating oil pressure
Air pressure inlet combustion chamber
Turbine cooling circuit water pressure
Flame detection
Servo motor
Variable speed drive defect
