Teaching suggested applications*

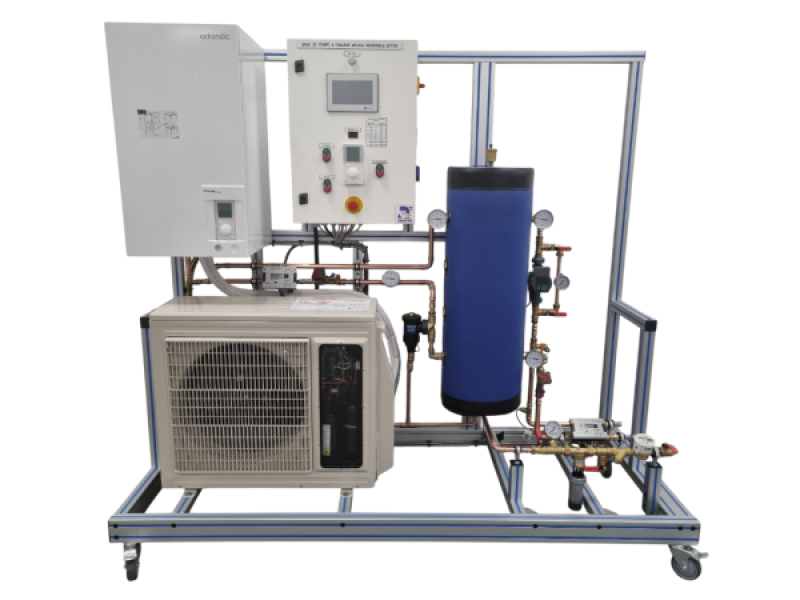

This bench has been designed to study a domestic heat pump (ATLANTIC brand)it includes two circuits for the dissipation of the heat and one tank. The tank is used to slow down the temperature rise and give some time to student to make the measurements and the configuration. The outdoor unit is on the same frame than the indoor unit. The hydraulic circuit include the main water circuit (with the exchanger between the fluid and water), the water tank and two water circuits for the dissipation of heat. Each circuit of dissipation includes a water pump with adjustable speed, a balancing valve on the return and two fittings for the quick connection of the dissipation units (fan heater, radiators..).

The bench is fully instrumented for a maximal pedagogical use.

The robust design of this device makes it suitable for use in schools. The equipment is set up on an Anodized aluminium frame on casters wheels. This gives it great strength and a flexibility of integration into your premises.
The manufacture of this equipment complies with the European standard for machinery manufacturing.

This equipment can be used alone or with other compatible equipment from our range (see last section of this document).

Fast coupling of coopling type.

Circulator

Shut off valve.

Oil filled manometer 0-4 bars.

Energy meter.

Thermometer.

Automatic air trap.

Safety valve.

Mixing bottle.

Drain valve.

Backflow preventer.

Pressure reducer.

Water meter.

Filter-sieve in Y.

Safety group.

Extra resistors

Buffer store.

Expansion tank.

Low pressure refrigerant manometer (LP)

High pressure refrigerant manometer (HP)

Air/water heat pump.

Balancing valve.

Electricity : 230 VAC 50 hz.

Network supply tap water 3 bars 15l/min

Waste water drainage (diam 40mm)
