Teaching suggested applications*

-          Study of an open channel flume

-          Study of a sub critical flow

-          Study of a super critical flow

-          Influence of the inclination of the channel

-          Understanding the relationship between water level above the crest of a weir and flow rate over the weir

-          Flow rates calculations

-          Visualization of flows

-          Hydraulic jump

-          Applying and understanding Manning's formula

Description

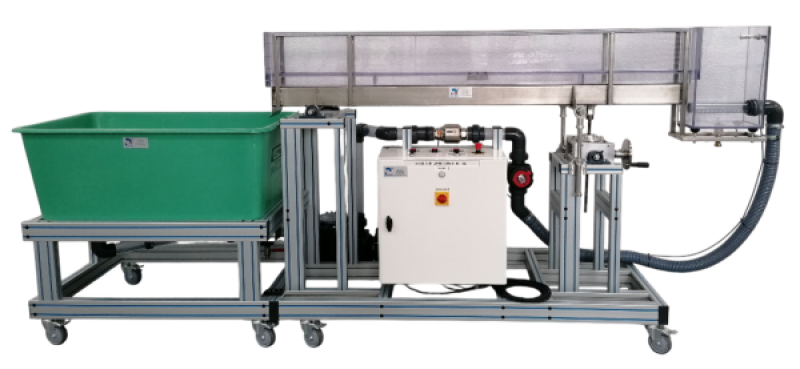

The BCI 050 bench allows the study of flows in open channel. Water is pumped into a water reserve and sent through the open channel.

Users can view the flows in the channel and place obstacles in order to see the impact on the flow.

The slope of the channel is adjustable in order to create different types of flow (or torrential or fluvial)

The robust design of this equipment makes it perfectly suited for school use.

Its anodized aluminum structure on wheels makes it very robust as well as a great flexibility of integration into your premises. The manufacture of this equipment meets the European machine directive

1 Open channel flume

Transparent walls

Section: 200 x 80 mm

Length: 2000 mm

Frame made of stainless steel

The flume is equipped with a hooh and point gauge

to measure the depth and chronometer

2 Location for weirs

Weirs provided:

- rectangular weir

- triangular weir

- sharp crested weir

- Broad crested weir

Other weirs are offered as options (not supplied)

3 upstream tank

Drainage valve in the lower part

High water level detector

4 Mechanical inclination system

Screw system

Manual operation

A digital sensor indicates the angle of inclination

• Electrical supply : 230 Vac – 50 Hz – 10 A
• Electrical network : 1 phase(s) + Neutral + Earth.
• Water supply : 300L
